| Model | Configuration | Dimensions | Filter Frame Material |
Material | Filteration Rate |
Max Working Temperature |
Compatible Models |
|---|---|---|---|---|---|---|---|

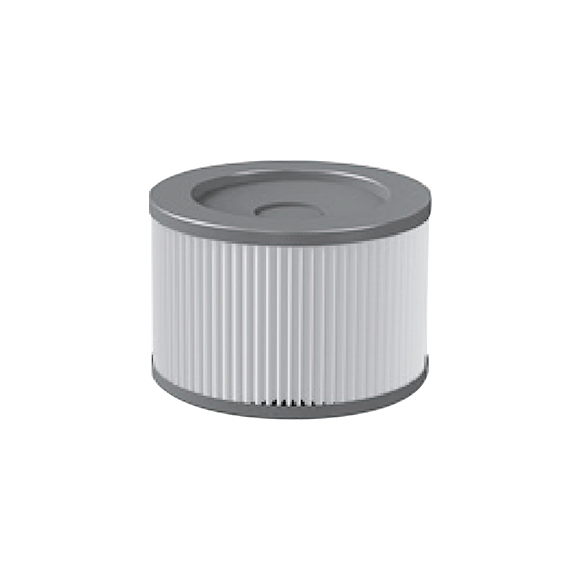

| CS-145-300-75P-R | Cylinder type | Ø145x315mm | Upper: ABS Lower: Steel |
Polyester+PTFE | 0.3um 99.5% or above |
60℃ | CHP-1200AT3 |
| CS-170-500-63P-R | Cylinder type | Ø175x500mm | Upper: ABS Lower: Steel |
Polyester+PTFE | 0.3um 99.5% or above |
60℃ |
CHP-1600AT3 CMP-2500AT3-A(-V1) |
| CS-200-500-75P-R | Cylinder type | Ø200x500mm | Steel | Polyester+PTFE | 0.3um 99.5% or above |
60℃ |
CMP-6900AT3-DSA-UD CMP-6900DSA-TP |
| CS-180-500-83P-R | Cylinder type | Ø180x500mm | Upper: EVA Lower: Polyurethane |
Polyethylene + PTFE | 0.3um 95% or above |
60℃ |
CMP-1500AT3-DSA-P CMP-2200AT3(-V1) CMP-3700AT3(-V1) CMS-3700TP CMS-3700TPS |
| CS-200-500-75P-R-DC | Cylinder type | Ø200x500mm | Upper: Steel Lower: Steel |
ESD Carbon fiber + PTFE | 0.3um 99.31% or above |
70℃ | CMP-4000D-V |
| CS-170-350-75P-R | Cylinder type | Ø170x350mm | Upper: Steel Lower: ABS |
Polyester + PTFE | 0.3um 99.5% or above |
60℃ |
CMS-2600TP-P CMS-2600TP1 CMS-2600TP1-P |
